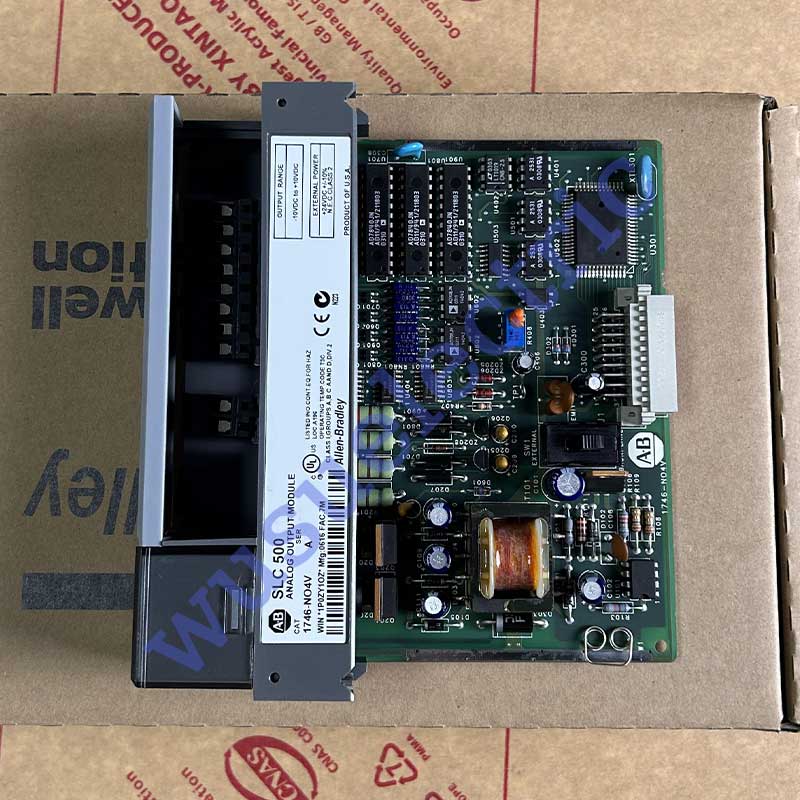

Allen Bradley 1746-NO4V Analog Output Module

• Product Line: SLC 500
• Part Number: 1746-NO4V
• Weight: 3.00 lbs (1.36 kg)
• Number of Outputs: 4 Analog Outputs
• Voltage Ranges: -10 to 10 V DC; 0 to 10 V DC; 0 to 5 V DC; 1 to 5 V DC
• External Power Supply Option: 24 V DC supported
• Individual Output Isolation: Not included
• Backplane Current Draw: 5 V at 55 mA; 24 V at 145 mA
• Backplane to Field Wiring Isolation Rating: 500 V DC
• Update Time for All Outputs in Parallel: 512 µs
• Terminal Connection: Removable terminal block
• Maximum Wire Size: #14 AWG
• Recommended Cable: Shielded Belden #8761
• Mounting: 1746 Chassis
• Operating Temperature: 0–60°C

The Allen Bradley 1746-NO4V analog output module is specifically designed for the SLC 500 series PLC system to address issues of limited analog signal precision and complex system integration. The module provides four selectable voltage outputs with multiple voltage ranges, enabling precise control for different industrial automation applications.

With respect to power requirements, the module consumes 55 mA at a voltage of 5V and 145 mA at 24V. It supports an external power supply of 24V DC, and while it does not offer individual output isolation, it ensures reliable operation. Notably, isolation between the backplane and field wiring is rated at 500V DC, promoting safety in various operational environments.

The update time for all outputs operating simultaneously is efficient, clocking in at 512 microseconds. Each module includes a removable terminal block for straightforward connectivity and installation. It accommodates a maximum wire size of #14 AWG and is best paired with shielded Belden #8761 cable to minimize interference. It is intended for installation within a 1746 chassis and can operate effectively in environments with temperatures ranging from 0 to 60 degrees Celsius. The 1746-NO4V module is designed to deliver performance and reliability in various control and automation systems.
