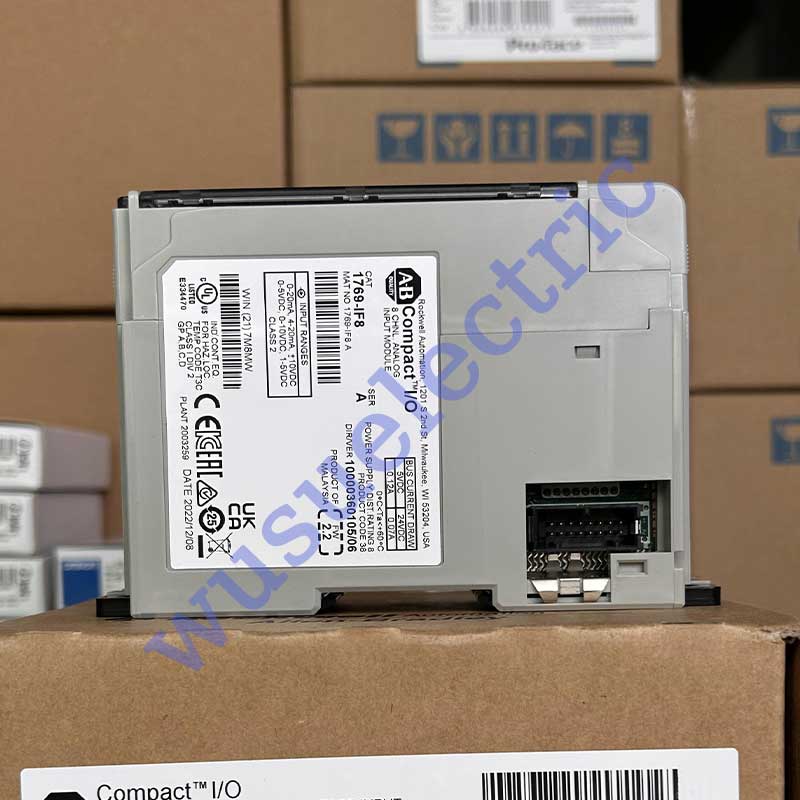

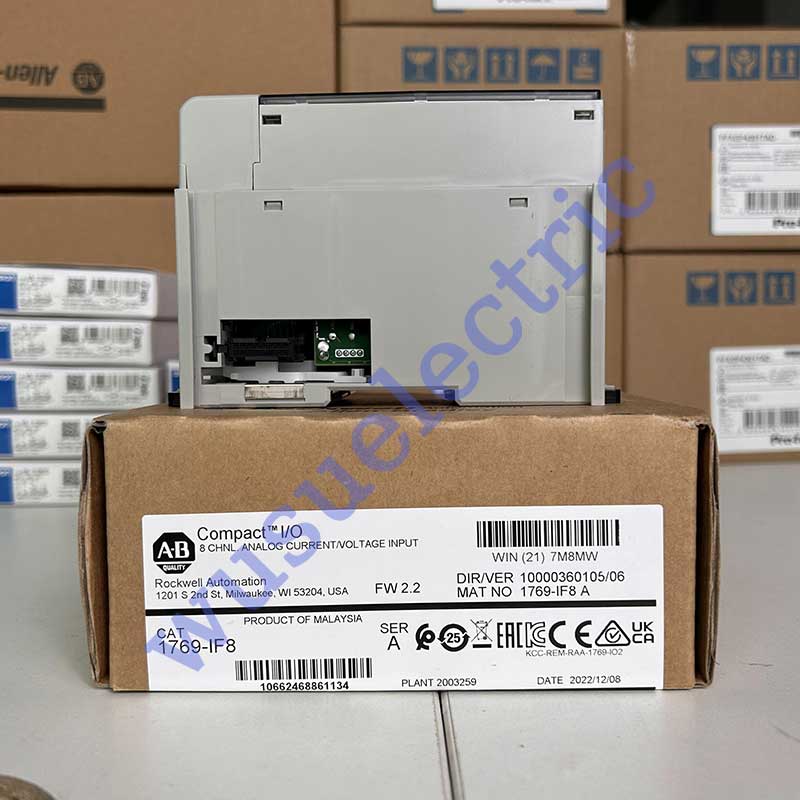

Allen Bradley 1769-IF8/A Analog Voltage/Current Input Module

• Series: CompactLogix
• Model: 1769-IF8
• Number of Inputs: 8 differential or single-ended channels
• Normal Operating Current Ranges: 0–20 mA / 4–20 mA
• Maximum Bus Current Draw: 120 mA at 5 V DC; 70 mA at 24 V DC
• Heat Dissipation: 3.24 W
• Maximum Resolution: 16 bits (unipolar); 15 bits plus sign (bipolar)
• Rated Working Voltage: 30 V AC / 30 V DC
• Input Impedance (Voltage Terminal): ~220 kΩ
• Input Impedance (Current Terminal): 250 Ω
• Operating Temperature Range: 0–60°C
• Weight: 1.00 lbs (0.45 kg)

Designed for the CompactLogix series, the Allen Bradley 1769-IF8 analog input module addresses the need for multi-channel analog signal acquisition and high-precision measurements in industrial automation. The module supports 8 channels, configurable for differential or single-ended inputs, compatible with a variety of current signal sensors, and suitable for diverse applications.

This module utilizes normal operating current ranges from zero to 20 milliamps or 4 to 20 milliamps. Such a range supports various types of analog sensors that require precise measurement of current signals. Additionally, it is engineered with a maximum resolution of 16 bits for unipolar inputs and 15 bits plus sign for bipolar inputs. This level of resolution enhances the fidelity of readings, making it suitable for applications that demand high accuracy.

Power requirements include a maximum bus current draw of 120 milliamps when powered at 5 volts DC and 70 milliamps at 24 volts DC. The module dissipates approximately 3.24 watts of heat during operation, which is manageable under normal conditions. The rated working voltage is capped at 30 volts for both AC and DC applications, making it broadly compatible with various systems.

The input impedance across the voltage terminals is typically around 220 KΩ, while the current terminals display an impedance of 250 Ω. This characteristic enables seamless interfacing with different types of sensors.

Designed to function effectively within an operating temperature range from 0 to 60 degrees Celsius, the 1769-IF8 is built to meet the demands of industrial environments. Its design priorities emphasize reliable performance and adaptability across applications.

Advantage Products

FAQ

1.Q:Other suppliers have a better price than yours?

A: ''To create the greatest benefit for clients'' is our belief, if you have a better price, please let Wusu know. We will try the best to meet your target price and support you.

2.Q:What's the delivery time ?

A: Normally we have enough stock for regular models(such as PLC FX3U-64MR/ES-A ) and we can deliver immediately at the same day after payment received. For some products that is not in stock, we normally deliver within one week.

3.Q:What is the standard of package?

A: Export standard package or special package according to customer requirement.

4.Q: Could Wusu provide technology support?

A: We're in this field for more than 15 years and we have our own technical team. Our engineer could give suggestion and help to solve the problem if there's any problem.

5.Q:Does Wusu keeps goods in stock or only trading?

A: We have warehouses in Guangzhou and HongKong and keep large stock of goods in it, that's how we promise fast delivery.

All products are covered by the Wusu Industrial Automation Company's 1 Year Warranty. Manufacturer's Warranty does not apply.

 Refund and replacement

1. Please contact us within 7 days if you have any question after you receiving the items.

2.The returned items has to be in its original condition, specific reason for the return, we will

issue a return or replacement for your order after we received the returns.

3.The buyer is responsible for all the shipping cost incurred.
