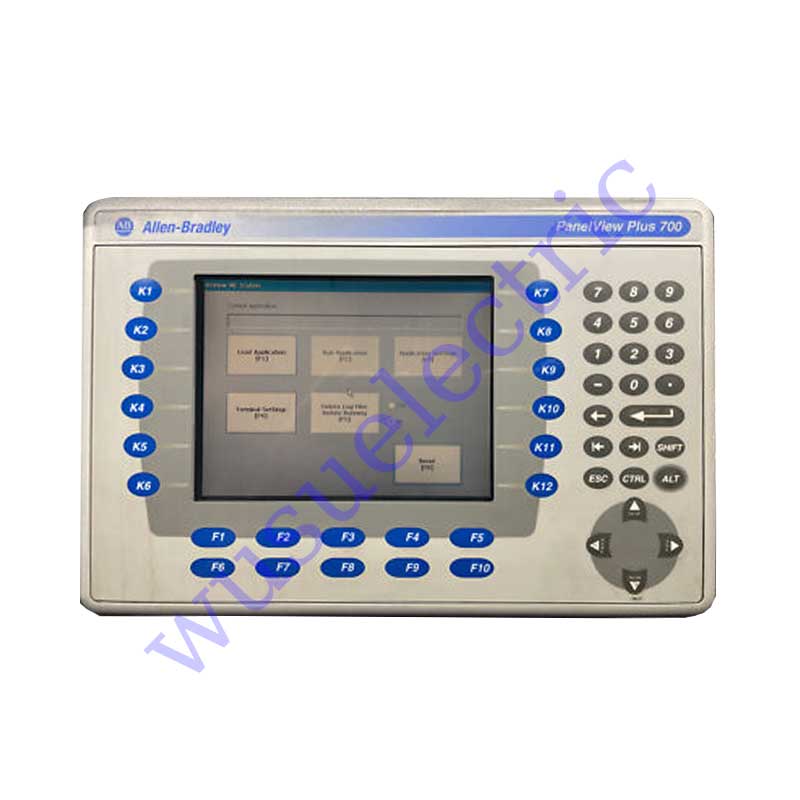

Allen Bradley 2711P-K7C4D1 Operator Terminals

• Resolution: 640 x 480 pixels, 18-bit color graphics
• Display Type: Color TFT LCD
• Input Type: Keypad
• Input Voltage Range: 18-32 VDC
• Input Power: 18-32 VDC
• Memory: 64 MB
• Communication Interface: Ethernet and RS-232
• Integrated Ports: Ethernet, RS-232, 2 USB Host Ports
• Ethernet Communication: EtherNet/IP
• Network Connector: RJ45 10/100Base-T
• External Storage Support: CompactFlash up to 512 MB
• Communication Indicator: Green LED
• Display Resolution: VGA 640 x 480
• Approximate Weight: 1.9 kg (4.2 lbs)
• Dimensions: 193 x 290 x 55 mm

The discontinued Allen Bradley Panelview Plus 700 2711P-K7C4D1 is an operator terminal that enables the user to interface with their machine. This HMI has a 6.5 in. Color Display. The user is able to control the HMI using the Keypad to input information and data. This unit is powered using 18-32 VDC power. This unit has an internal memory of 64 MB. It supports EtherNet/IP (Ethernet Industrial Protocol) that is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal. The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.

The Allen-Bradley 2711P-K7C4D1 is part of the PanelView Plus product family. This operator terminal is specifically part of the PanelView Plus 700 product sub-category. This device is used to allow operators and plant personnel to control and monitor a machine or process through a central, convenient location in the factory floor. It eliminates the need of physically approaching each instrument to read measurements and operate each device.

The 2711P-K7C4D1 comes with a 64 MB logic module. Additionally, it may be installed with an external CompactFlash storage with up to 512 MB of removable memory. This device uses an internal battery for Real-Time Clock (RTC) battery back-up. The battery has a four (4) year minimum lifespan when the device is operated at 25 degrees Celsius or 77 degrees Fahrenheit. The battery-backed RTC has an accuracy of +/- 2 minutes per month. For troubleshooting, the 2711P-K7C4D1 comes with two (2) LED indicators for Communication (GREEN) and Fault (RED).

Advantage Products

FAQ

1.Q:Other suppliers have a better price than yours?

A: ''To create the greatest benefit for clients'' is our belief, if you have a better price, please let Wusu know. We will try the best to meet your target price and support you.

2.Q:What's the delivery time ?

A: Normally we have enough stock for regular models(such as PLC FX3U-64MR/ES-A ) and we can deliver immediately at the same day after payment received. For some products that is not in stock, we normally deliver within one week.

3.Q:What is the standard of package?

A: Export standard package or special package according to customer requirement.

4.Q: Could Wusu provide technology support?

A: We're in this field for more than 15 years and we have our own technical team. Our engineer could give suggestion and help to solve the problem if there's any problem.

5.Q:Does Wusu keeps goods in stock or only trading?

A: We have warehouses in Guangzhou and HongKong and keep large stock of goods in it, that's how we promise fast delivery.

Revision Part

2711P-K7C4D1

2711P-K7C4D1 Ser B

2711P-K7C4D1X

Alternative names

2711P-K7C4DI

2711P-K7CAD1

2711PK7C4D1

2711PK7C4DI

2711PK7CAD1

271IP-K7C4D1

271IPK7C4D1

27I1P-K7C4D1

27I1PK7C4D1

27IIP-K7C4DI

27IIP-K7CADI

27IIPK7C4DI

27IIPK7CADI
