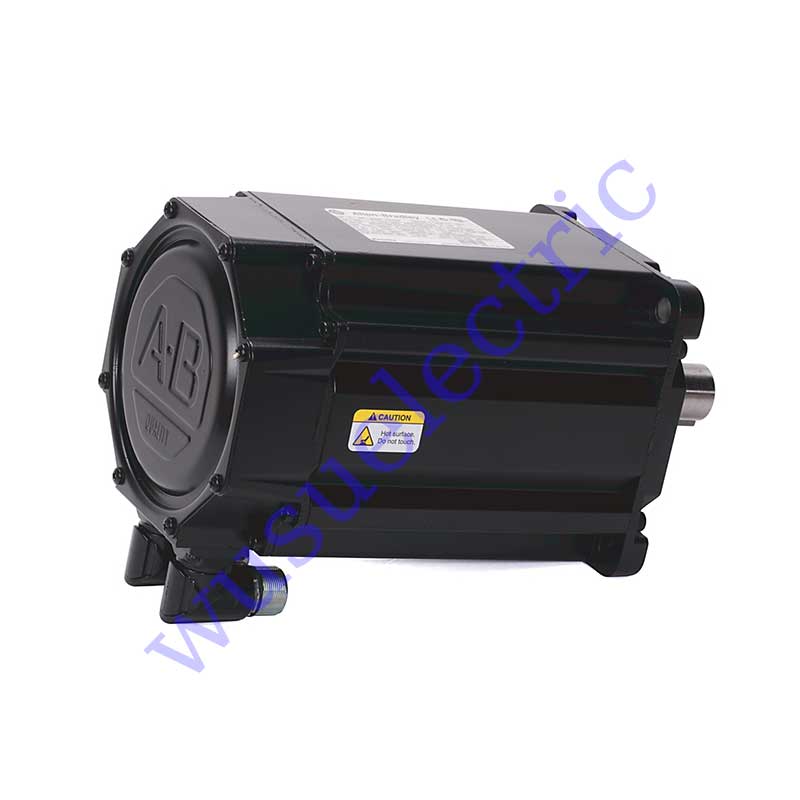

Allen Bradley MPL-B580J-MK74AA AC Rotary Servo Motor

• Voltage Class: 400V AC
• Input Voltage: 460VAC
• Rated Power: 7.9 kW
• Rated Speed: 3750 RPM
• Frame Size: 165 mm
• Magnetic Stack Length: 8 inches
• Series Type: Low-Inertia
• Continuous Stall Torque: 34 Nm
• Continuous Stall Current: 32 A
• Operating Temperature: 0 to 40°C

The MPL-B580J-MK74AA servo motor is an MPL series low-inertia servo motor manufactured by Allen-Bradley. It has ratings of 460 Volts AC voltage, 7.9 kilowatts of output power, 3000 revolutions per minute, 34 N-m stall torque, and 32 stall Amps. Its multi-turn encoder provides absolute feedback on the shaft’s position and the servo motor is fitted out with high-energy rare-earth magnets to provide faster acceleration and better performance in different applications. The MPL-B580J-MK74AA servo motor can be used as a component of an Allen-Bradley Kinetix drive’s safe-off feature because of its encoder type. Its magnetic stack length is 8 inches and its circular DIN rotatable cable connectors allow for more flexibility in the cable orientations.

To improve its torque performance, the MPL-B580J-MK74AA servo motor leverages innovative winding technology. The material used to insulate its windings allows for more efficient heat transfer to avoid exceeding the motor’s recommended operating temperature range of 0 to 40 degrees Celsius. This servo motor features an IEC metric mounting flange. It has no shaft seal but it is compatible with Allen-Bradley MPL-SSN-F165-32MM shaft kits for improved environmental protection ratings and to prevent moisture and particles from entering its bearings. The MPL-B580J-MK74AA servo motor performs optimally whether it is mounted vertically or horizontally on a machine. The mounting pilot that ships with this servo motor simplifies the mounting process by ensuring that it is properly aligned to the servo motor. Different cable types can be used to install the MPL-B580J-MK74AA servo motor. When connecting the servo motor, ensure that its cables are restrained to help prevent uneven tension or flexing at the cable connectors.

Advantage Products

FAQ

1.Q:Other suppliers have a better price than yours?

A: ''To create the greatest benefit for clients'' is our belief, if you have a better price, please let Wusu know. We will try the best to meet your target price and support you.

2.Q:What's the delivery time ?

A: Normally we have enough stock for regular models(such as PLC FX3U-64MR/ES-A ) and we can deliver immediately at the same day after payment received. For some products that is not in stock, we normally deliver within one week.

3.Q:What is the standard of package?

A: Export standard package or special package according to customer requirement.

4.Q: Could Wusu provide technology support?

A: We're in this field for more than 15 years and we have our own technical team. Our engineer could give suggestion and help to solve the problem if there's any problem.

5.Q:Does Wusu keeps goods in stock or only trading?

A: We have warehouses in Guangzhou and HongKong and keep large stock of goods in it, that's how we promise fast delivery.

Revision

MPL-B580J-MK74AA Ser A

Alternative names

MPL-8580J-MK74AA

MPL-85BOJ-MK7AAA

MPL-B580J-MK7AAA

MPL-B58OJ-MK74AA

MPL-B5B0J-MK74AA

MPL8580JMK74AA

MPL85BOJMK7AAA

MPLB580JMK74AA

MPLB580JMK7AAA

MPLB58OJMK74AA

MPLB5B0JMK74AA
