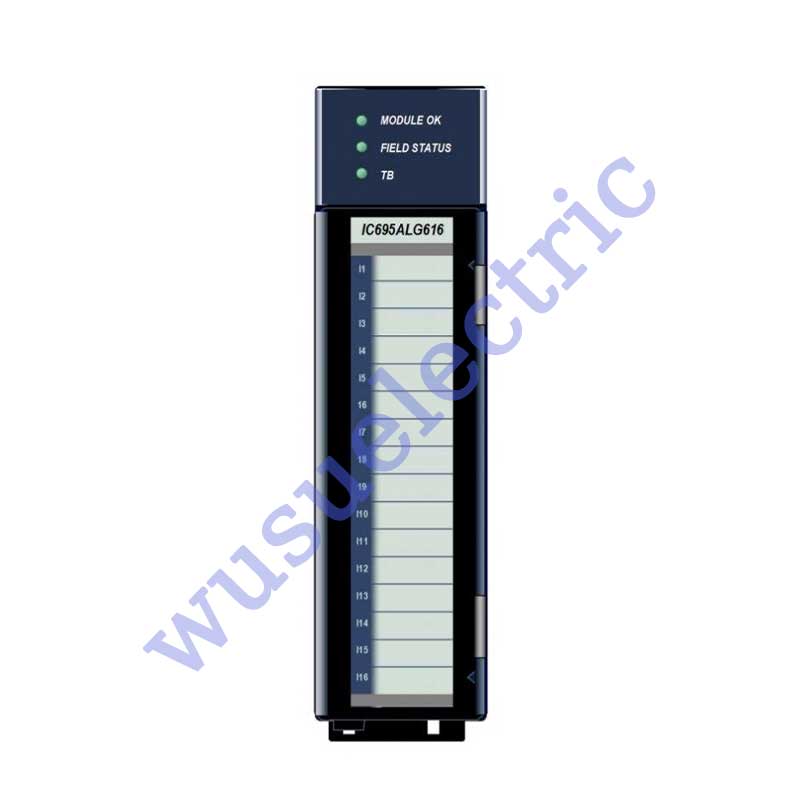

Fanuc IC695ALG616 ANALOG INPUT MODULE

The IC695ALG616 is an analog input module that is manufactured by Emerson Automation, formerly by GE Intelligent Platforms (GE IP). This module features may provide Sixteen (16) analog input channels if configured as single-ended inputs or Eight (8) analog inputs for differential wiring. It comes with a built-in Analog to Digital Converter (ADC) with output conversion resolution of 24-bits. The IC695ALG616 input channels is compatible of being wires with analog current and voltage signals. Accepter Current signals by this module include 0 to 20mA, 4 to 20mA, ± 20mA current signals and ±10V, 0 to 10V, ±5V, 0 to 5V, 1 to 5V voltage signals. The converted analog data is saved as floating point 32-bit IEEE data or 16-bit integer using a 32-bit register. Each channel of this module has configurable channel filters to stabilize and minimize fluctuation to become useful to the process. Configurable input filters include 8Hz, 12Hz, 16Hz, 40Hz, 200Hz and 500Hz. Parameters of this module are configured using the Proficy Machine Edition (PME) programming software. No jumpers and DIP switches are needed to dictate the operation of this module. Additionally, this module is capable of performing autocalibration during every start-up. Embedded module protections include Open circuit detection, Overvoltage and Overcurrent protection. Aside from these protection settings, each channels can be individually configured with alarm settings, specifically, Very Low, Low, High and Very High alarms. Positive and Negative rate of change may also be included into the alarm features of this module while Module fault may also be configured to be reported to the host CPU.
