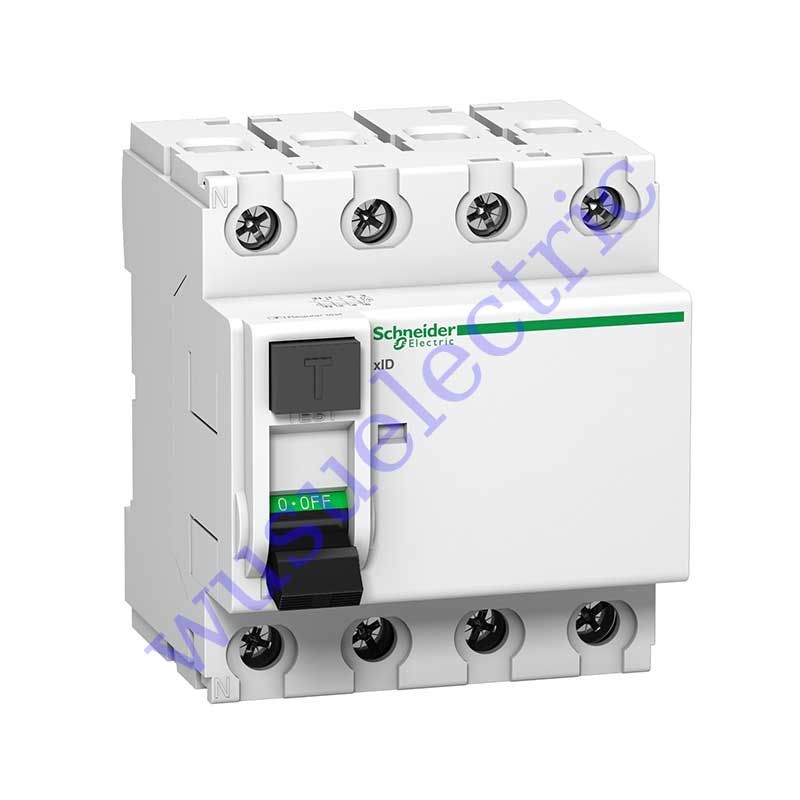

Schneider A9N16259 residual circuit breaker

• Width: 72 mm
• Height: 81 mm
• Depth: 75 mm
• Product Weight: 370 g
• Mechanical Endurance: 4000 cycles
• Electrical Endurance: 4000 cycles
• Operating Temperature: -5...40 °C
• Storage Temperature: -40...85 °C
• Earth Leakage Protection Class: Type AC
• Rated Operational Voltage: 400...415 V AC
• Rated Insulation Voltage: 500 V AC
• Rated Impulse Withstand Voltage: 6 kV
• Network Frequency: 50 Hz

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 4P circuit breaker with In rated current of 63A, AC type protection class and a 100mA earth leakage sensitivity. This product protects against electrical shock by indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is up to 630A . The electrical endurance is up to 4000 cycles. The mechanical endurance is up to 4000 cycles. The Ue operational voltage is 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 81mm x (D) 75mm. The weight is 370g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 85°C.

Advantage Products

FAQ

1.Q:Other suppliers have a better price than yours?

A: ''To create the greatest benefit for clients'' is our belief, if you have a better price, please let Wusu know. We will try the best to meet your target price and support you.

2.Q:What's the delivery time ?

A: Normally we have enough stock for regular models(such as PLC FX3U-64MR/ES-A ) and we can deliver immediately at the same day after payment received. For some products that is not in stock, we normally deliver within one week.

3.Q:What is the standard of package?

A: Export standard package or special package according to customer requirement.

4.Q: Could Wusu provide technology support?

A: We're in this field for more than 15 years and we have our own technical team. Our engineer could give suggestion and help to solve the problem if there's any problem.

5.Q:Does Wusu keeps goods in stock or only trading?

A: We have warehouses in Guangzhou and HongKong and keep large stock of goods in it, that's how we promise fast delivery.

All products are covered by the Wusu Industrial Automation Company's 1 Year Warranty. Manufacturer's Warranty does not apply.
