Allen Bradley 20AD011A3AYNANC0 AC Drive

• Brake Resistor: No Internal
• Control: Enhanced Control with 24V I/O
• Internal Communication Module: No Communication Module
• Sub Brand: PowerFlex 70 AC Drive
• Degree of Protection (IP): IP20
• Shock: 15 G peak for 11 ms duration (±1.0 ms)
• Vibration: 0.152 mm (0.006 in) displacement, 1 G peak

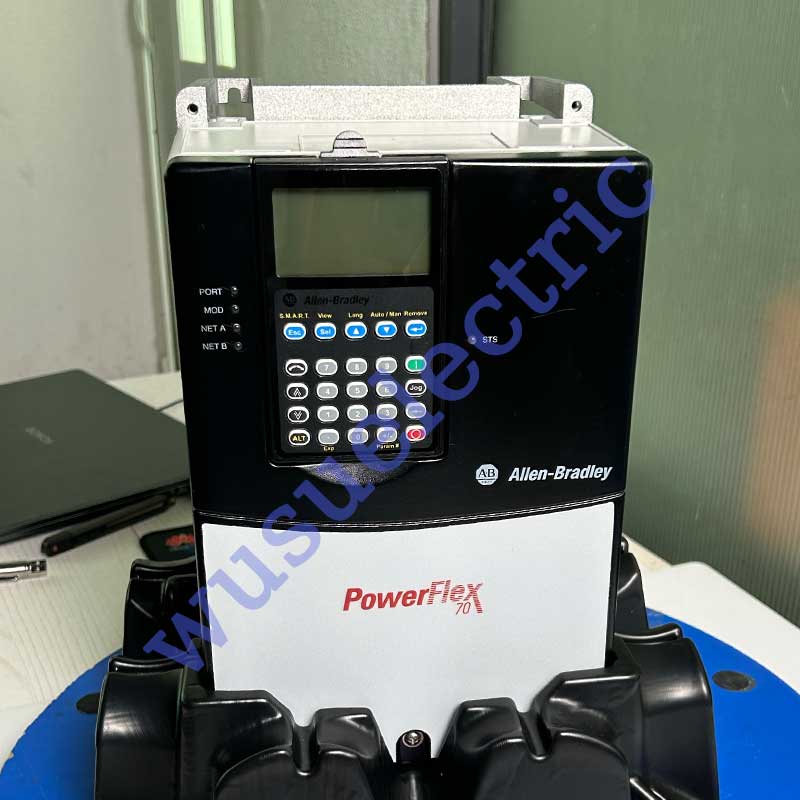

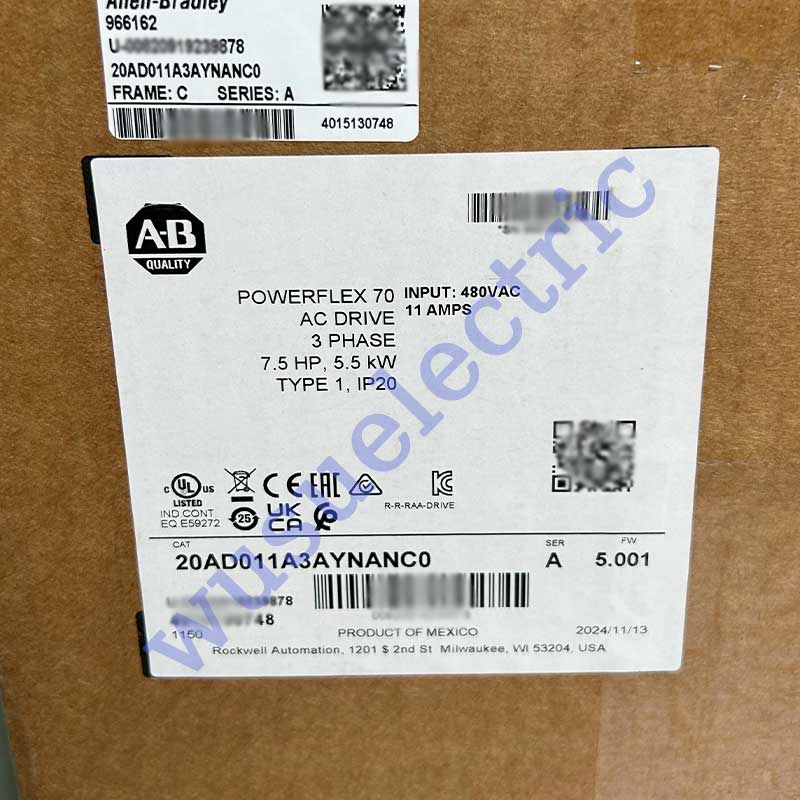

The Allen-Bradley 20AD011A3AYNANC0 is a PowerFlex 70 series adjustable frequency drive. Its input specifications are 480 Volts AC (single or 3-phase). The specifications of the drive output power are 5 horsepower in heavy-duty mode and 7.5 Horsepower in normal duty mode. The specifications of the drive output current are 5.5 Amps with single-phase input and 11 Amps with 3-phase input. The features available with the 20AD011A3AYNANC0 include a user manual, a brake IGBT, an HMI, and enhanced control (no feedback). The HMI can be used to configure the drive and it can also be used for troubleshooting. The HMI supports 7 languages, including English, Spanish, and French. It features a backlit LCD and a numeric keypad. A communication slot is not available on the drive. However, numerous optional communication modules – including the Ethernet, DeviceNet, ControlNet, BACnet and serial modules– are available from the manufacturer. An integrated brake resistor is not available.

The frame C 20AD011A3AYNANC0 is enclosed in a NEMA/UL type 1 enclosure that is rated with an IP20 rating, which weighs approximately 15 pounds and it measures 300 x 185 x 180 millimeters. The recommended temperature range for storing the drive when it is not in use is from 0 to 50 degrees Celsius. Only qualified technicians who possess the requisite experience should be involved in the installation and maintenance process of the 20AD011A3AYNANC0. To prevent electric shock, the voltage on the bus capacitors of the drive must be allowed to discharge completely prior to working on the drive. Electrostatic Discharge (ESG) precautions should be followed during installation and testing to prevent damage to the ESD sensitive drive assemblies and parts.

Revision Part

20AD011A3AYNANC0 Ser A
