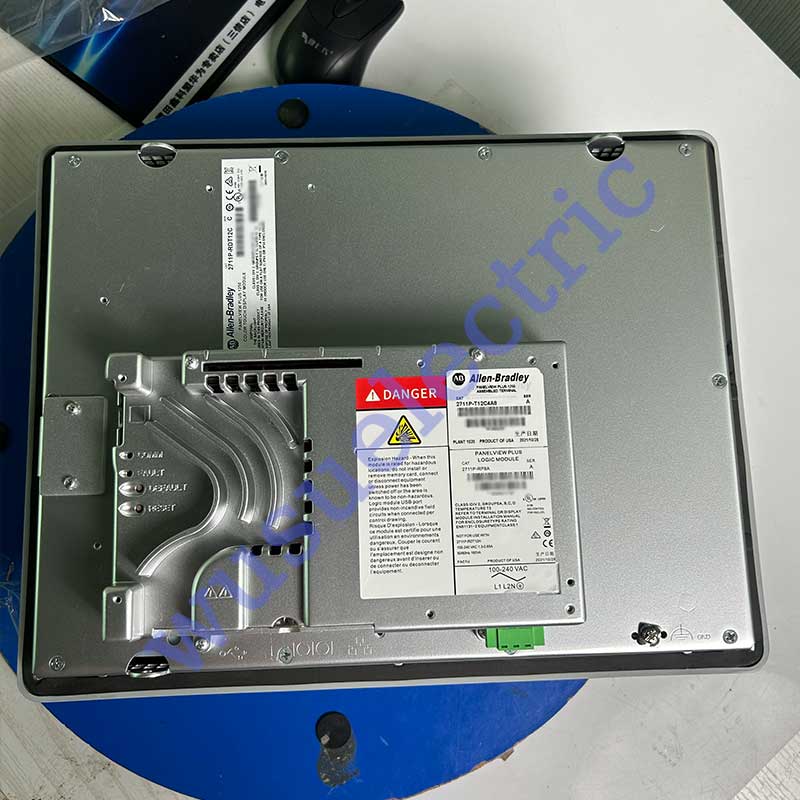

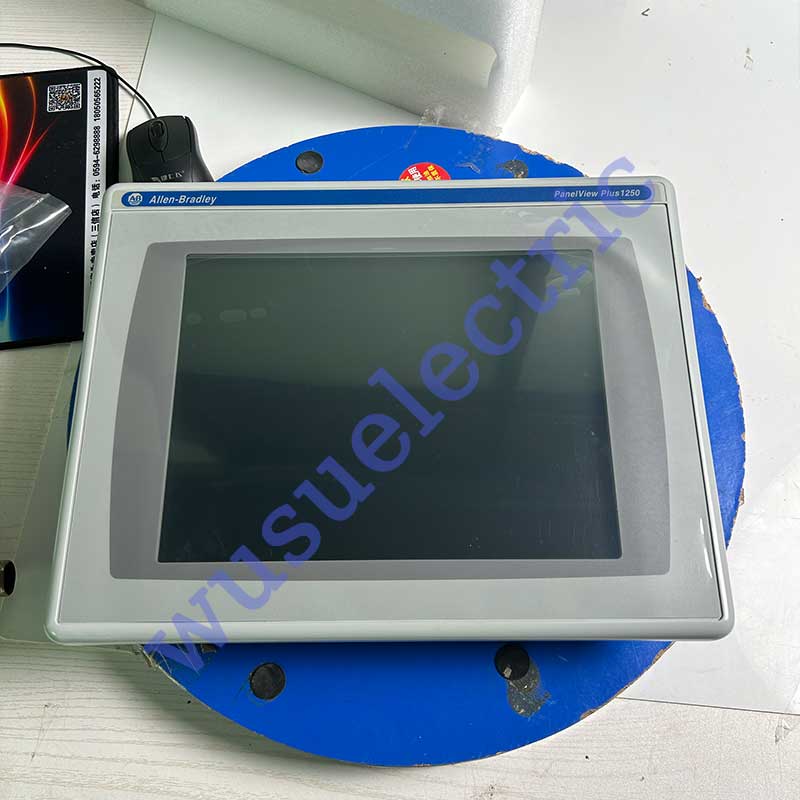

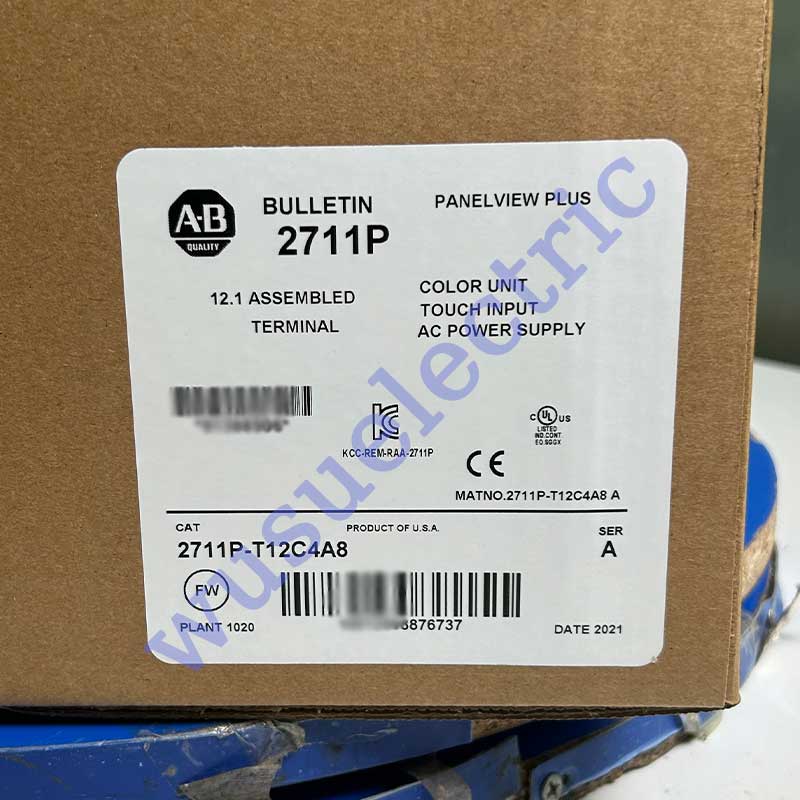

Allen Bradley 2711P-T12C4A8 Operator Terminals

• Weight: 6.00 lbs (2.72 kg)
• Backlight: CCFL, 50,000 hours min at 25°C (77°F), field replaceable
• Display Size: 12.1 inches
• Product Family: PanelView Plus 6 Operator Terminals
• Operator Input: Touch
• Display Type: Color active-matrix TFT
• Lifecycle Status: End of life
• Display Area: 246 × 184 mm (9.7 × 7.2 in.)
• Resolution: 800 × 600, 18-bit color graphics
• Touch Life: 1 million presses
• Internal Memory: 512 MB Flash / 512 MB RAM
• Integrated Ports: Ethernet, RS-232, 2 × USB Host
• Input Voltage Range: 100–240 VAC
• Input Frequency: 50–60 Hz

The Allen-Bradley 2711P-T12C4A8 is a PanelView Plus 6 operator terminal that features a 12.1-inch colored display screen, an embedded Analog resistive touch screen, integrated 512 MB Flash and 512 MB Random Access Memory (RAM) with integrated Ethernet, and RS232 communication port as well as USB interface. This operator terminal is powered by an input voltage of 100 to 240 VAC along a frequency of 50-60 Hz.

The 2711P-T12C4A8 supports horizontal or landscape installation orientation to an enclosure rated NEMA/UL Type 12, 13, 4X (indoor use only), and IEC IP54, IP6. To mount this operator terminal, create a panel cut-out with dimensions of 257 x 338 mm or 10.11 x 13.29 in. Additionally, maintain a mounting clearances of 51 mm (2 in.) (Top), 102 mm (4 in.) (Bottom), 25 mm (1 in.) (Side). Install appropriate climate control devices such as a fan or heater.

The 2711P-T12C4A8 is installed with a built-in battery with minimum expected operational lifespan of Four (4) years. It is primarily utilized to provide critical data timestamps. This battery-backed clock has an accuracy of +/- 2 minutes. In the event of low charge, the battery is field replaceable with catalog number 2711P-RY2032.

It also supports File Transfer Protocol Feature (FTP), Active X control support and PDF file viewer.

The 2711P-T12C4A8 weighs approximately 3.2 kilograms (7.0 pounds) and it measures 11.12 x 14.30 x 2.18 inches. It has an analog resistive touchscreen with a 1-million-press actuation rate of 10 to 110 G. Users can input data through its 12.1-inch active-matrix TFT touchscreen display with 9.7 x 7.2-inch display dimensions and a resolution of 800 x 600, and 18-bit color graphics. It has a luminance rating of 300 cd/m2 (Nits). The 2711P-T12C4A8 terminal has a non-replaceable backlight with a 50,000-hour standby time and a battery-backed real-time clock with 4 years of battery life. The 2711P-T12C4A8 has an internal memory of 512 MB with approximately 79 MB of free user memory, and 512 MB of volatile memory for application processing. When it is operational, the 2711P-T12C4A8 has a thermal dissipation of 240 BTU/hour and a shock rating of 30 G coupled with a vibration of 2 G at 10 to 500 Hertz. It can operate at an altitude of 2000 meters (6561 feet) without derating and at a temperature range of 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit) with a relative humidity of between 5 and 95%, non-condensing.
