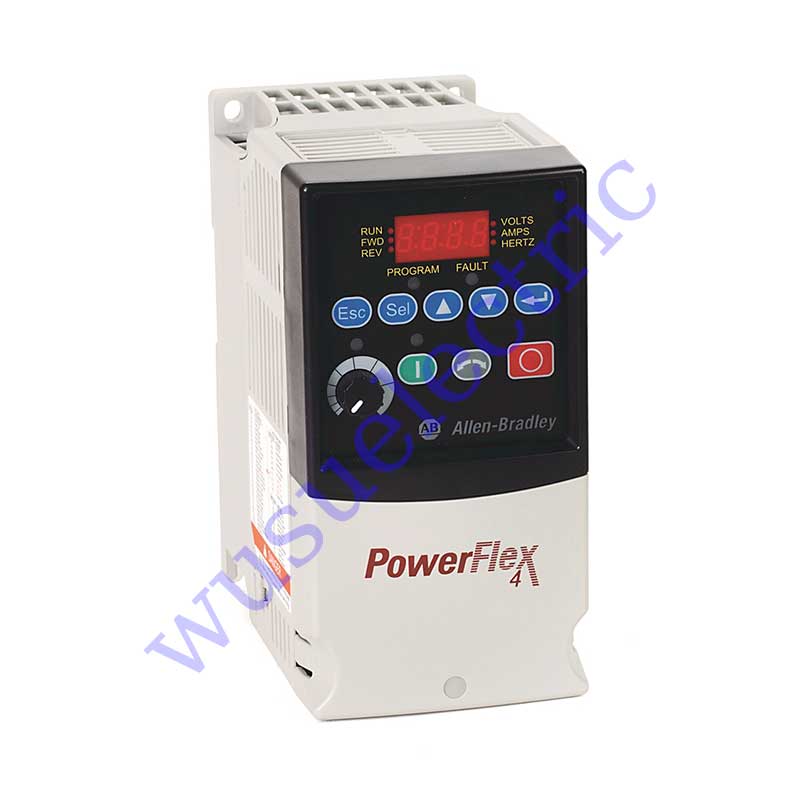

Allen Bradley 22A-A3P6N113 AC Drive

• Height: 152 mm
• Width: 80 mm
• Depth: 136 mm
• Product Weight: 0.99 kg
• Input Current: 9.2 A
• Output Voltage: 0…230 VAC
• Output Phase: Three Phase
• Output Current: 3.6 A
• Power Rating: 0.75 kW
• Horsepower Rating: 1 HP

The 22A-A3P6N113 is an adjustable frequency AC drive by Allen-Bradley. It is part of the PowerFlex 4 series that is used for implementing modulating speed control of industrial AC motors. It has configurable parameters allowing the drive to operate according to the machine's requirements. The supported control method of the 22A-A3P6N113 is Volts / Hertz (V/Hz) control which is specifically compatible for use in speed control applications. The drive’s electrical ratings include an input voltage rating of 200-240 VAC, 1-Phase, and input current of 9.2 Amperes. It has an output voltage of 0-230 VAC, 3-Phase, output current, and power of 3.6 Amperes and 1.0 HP or 0.75 kW with a programmable output frequency of 0-240 Hz and operating efficiency of 97.5%. The drive’s undervoltage trip is at 405V DC bus voltage which is equivalent to 290V AC of the incoming line voltage while overvoltage trip is set at 210V DC bus voltage (equivalent to 150V AC incoming line). Both support offline and online programming, parameters upload, download, and edit including parameter compare. Hardwired electrical components may be terminated to this drive as it comes with Five (5) discrete inputs; One (1) unipolar analog input and One (1) N.O/N.C. dry contact output.

The Allen-Bradley 22A-A3P6N113 belongs to the PowerFlex 4 category of base drives. It has a voltage rating of 240 Volts AC, 1-phase with an output current of 3.6 Amps and power of 0.75 kW (1.0 Horsepower). The drive is equipped with a Panel Mount-IP 20 (NEMA Type Open) enclosure, and a fixed keypad. It can operate out-of-the-box if the control keys and the local potentiometer are available. The drive has an integral S-Type EMC filter. This filter is required in Class A and Class B environments in which cable lengths do not exceed 1000 centimeters and 100 centimeters in length, respectively. The 22A-A3P6N113 lacks an IGBT brake but it is equipped with RS-485 communications. The height of the 22A-A3P6N113 is 15.2 centimeters but is 18.5 centimeters when an alternative kit such as IP30, NEMA 1/UL Type 1 has been installed. The width and depth are 8 centimeters and 13.6 centimeters, respectively.
