Allen Bradley 5094-AEN2TRXT Ethernet Adapter

• Module Current Rating: 1880 mA
• Module Inrush Current: 5700 mA for 100 ms
• Backplane Voltage: 15 V DC
• Backplane Current: 1800 mA
• Maximum Power Dissipation: 6.2 W at 18 V DC
• Maximum Thermal Dissipation: 21.1 BTU/hr at 24 V DC
• Isolation Voltage: 300 V continuous
• Basic Insulation Test: 2121 V AC for 60 seconds
• Wiring Material: Copper conductor
• Recommended Wire Size: 2.5 mm² / 14 AWG
• Wire Temperature Rating: 105°C

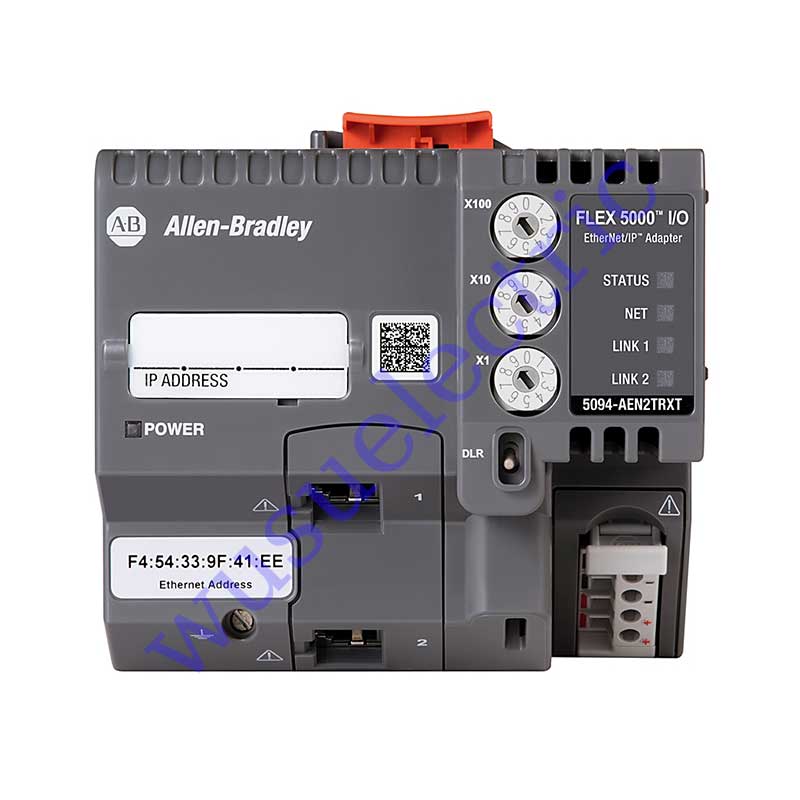

The 5094-AEN2TRXT adapter is a Flex 5000 series Ethernet/IP adapter manufactured by Allen-Bradley. It comes with two RJ 45 ports. The isolation voltage rating of this adapter variant is 300 Volts continuous. The adapter has a basic insulation type which has been tested at 2121 Volts AC for 60 seconds. The power to backplane and backplane to Ethernet levels have been tested with 4242 Volts DC for 60 seconds. The 5094-AEN2TRXT adapter is equipped with four status indicators to report its operating status. These indicators are located on the front panel of the adapter. It has a maximum power dissipation of 6.2 Watts in the form of heat at 18 Volts DC. The maximum thermal dissipation of the adapter is 21.1 BTU per hour at 24 Volts DC.

The 5094-AEN2TRXT adapter is equipped with different system warning features. It can alert the operators for critical temperature levels, mismatched cables, and lost connections. The indicator blinks red to alert the operators. Module tags are created when the adapter is added to a controller project and the connection is set to the status. The adapter is equipped with a rotary switch which helps to reset it. To reset the adapter, it powers down and then the rotary switch is set to level 888 and then it is powered up again. The rotary switch should be set back to the previous address after the reset process. The 5094-AEN2TRXT adapter uses 2.5 millimeters 14 AWG cable rated at 105 degrees Celsius for single wire connections. The adapter uses copper wire. The adapter should not be exposed to EMC noise.
