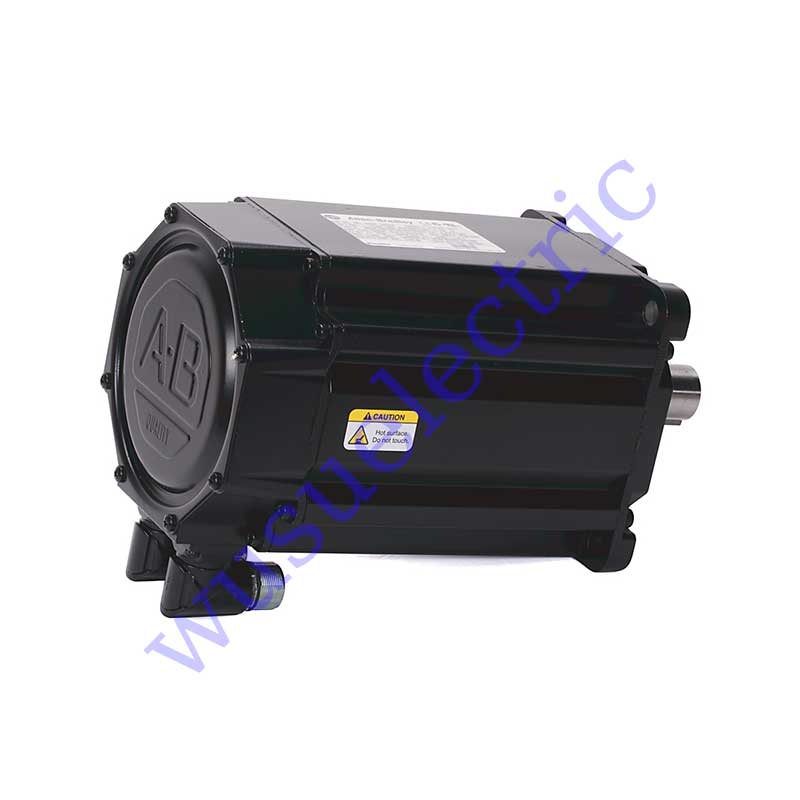

Allen Bradley MPL-B320P-SJ74AA Servo Motor

• Voltage Class: 400 Volts AC
• Input Voltage: 460V AC
• Frame Size: 100 mm
• Magnetic Stack Length: 2 inches (50.8 mm)
• Rated Speed: 5000 RPM
• Feedback Type: Single-turn High-resolution Encoder
• Encoder Specification: 1024 sin/cos Absolute Feedback
• Brake: 24V DC Brake
• Weight: 10.00 lbs (4.54 kg)

The MPL-B320P-SJ74AA servo motor is a servo motor designed by Allen-Bradley/Rockwell Automation, a well-known producer of industrial drives, motors, and other components that serve as integral parts of powerful machine systems. The MPL-B320P-SJ74AA servo motor is part of the Allen-Bradley MP series of low-inertia motors. The MPL-B320P-SJ74AA servo motor is used with high-quality cables and connectors that ensure a safe and reliable working environment and that allow for easy maintenance. The cables available for this servo motor include standard cables and dedicated cables in various lengths. The cables are color-coded and they fulfill the requirements of standards such as the NFPA-79, RoHS, and the DESINA standards. Besides that, the MP series connectors are extremely intuitive and their one-quarter turn attachment creates a tight and secure connection.

The MPL-B320P-SJ74AA servo motor operates at a temperature range of 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit) and its storage temperature should be between -30 and 70 degrees Celsius (-22 and 158 degrees Fahrenheit). For storage, the servo motor should be kept in a non-corrosive environment with relative humidity levels between 5 and 95% (non-condensing). The MPL-B320P-SJ74AA servo motor is intended to be used at an input voltage of 460 Volts AC while its speed rating is at 5000 rpm. This MP servo motor is equipped with high-resolution encoder feedback and a shaft key. The motor does not include a shaft seal and the included control options are standard options. Besides that, the mounting flange of the motor is IEC metric and its frame has a size of 100 millimeters. This first-class rotary servo motor has permanent magnets and it comes with an optional 24 Volts DC brake that provides additional functionality.
