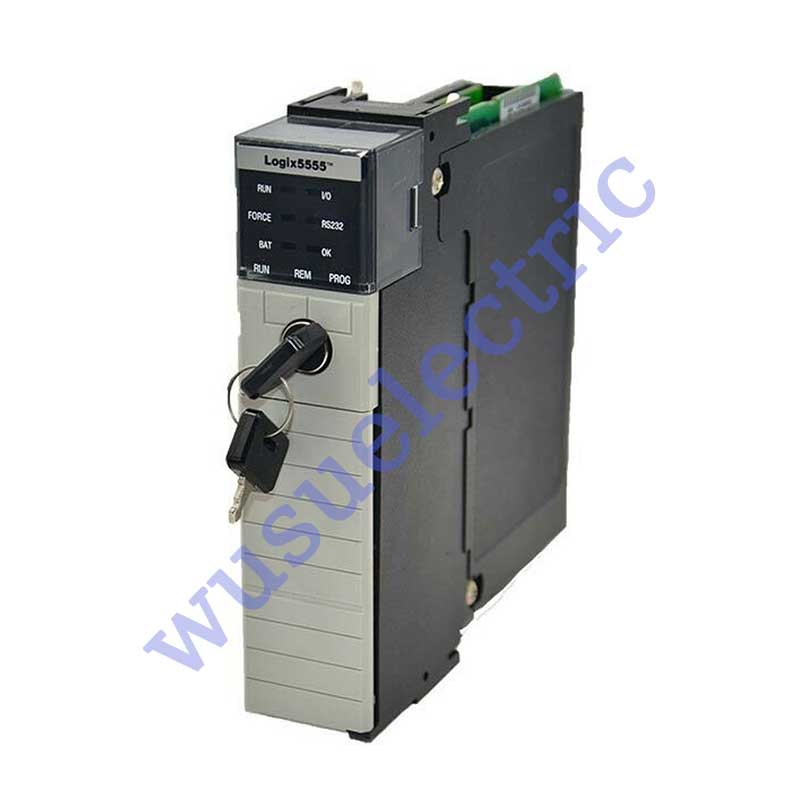

Allen Bradley 1756-L55M13 Processor Module

• Weight: 0.81 lbs (0.37 kg)
• Module Type: Processor Module
• RAM: 1.5 MB
• Maximum I/O: 128,000
• Maximum Analog I/O: 4,000 Input, 2,000 Output
• Program Scan Time: 0.08 ms
• Backplane Current (5V DC): 1.23 A
• Backplane Current (24V DC): 14 mA
• Operating Temperature: 32–140 °F (0–60 °C)
• Vibration: 10–500 Hz
• Relative Humidity: 5–95%

The Allen-Bradley 1756-L55M13 is a Series A ControlLogix 5555 controller. While this particular controller does not have a nonvolatile memory available, it does have a 1.5 Mbytes data and logic memory and 208 kbytes I/O memory available. The 1756-L55M13 controller also has a weight of 0.35 g or 12.5 oz. It does not have an enclosure type rating since it is an open-style controller.

It also has the capacity to support the following communication options: DeviceNet, ControlNet, Ethernet/IP, Universal Remote I/O serial, Data Highway Plus, Modbus via ladder routine, SynchLink, and DH-485.

The 1756-L55M13 has backplane currents of 0.014A at 24V DC and 1.23 A at 5.1V DC. Its thermal dissipation is 19.1 BTU/hr, while its power dissipation is 5.6W. It has a basic insulation type and a continuous isolation voltage of 30V and has also been tested to withstand 707V DC for 60s. The conducted RF immunity of the 1756-L55M13 controller is 10V rms with 1 kHz sine-wave 80%AM from 150 kHz to 80 MHz.

The storage temperature of the controller is between -40 to 85 Degrees Celsius and the operating temperature is between 0 to 60 Degrees Celsius. Relative humidity, which is noncondensing, is from 5% to 95%. It has a vibration of 2 g at 10 to 500 Hz, an operating shock of 30 g, and a non-operating shock of 50 g.

This controller has batteries that can be replaced but only if needed and is only compatible with the 1756-BA1 lithium battery. It can only be connected with either the 1756-CP3 or 1747-CP3 programming cable. The 1756-L55M13 controller can be used in a redundant controller system but it needs to be located in the same ControlNet network.
