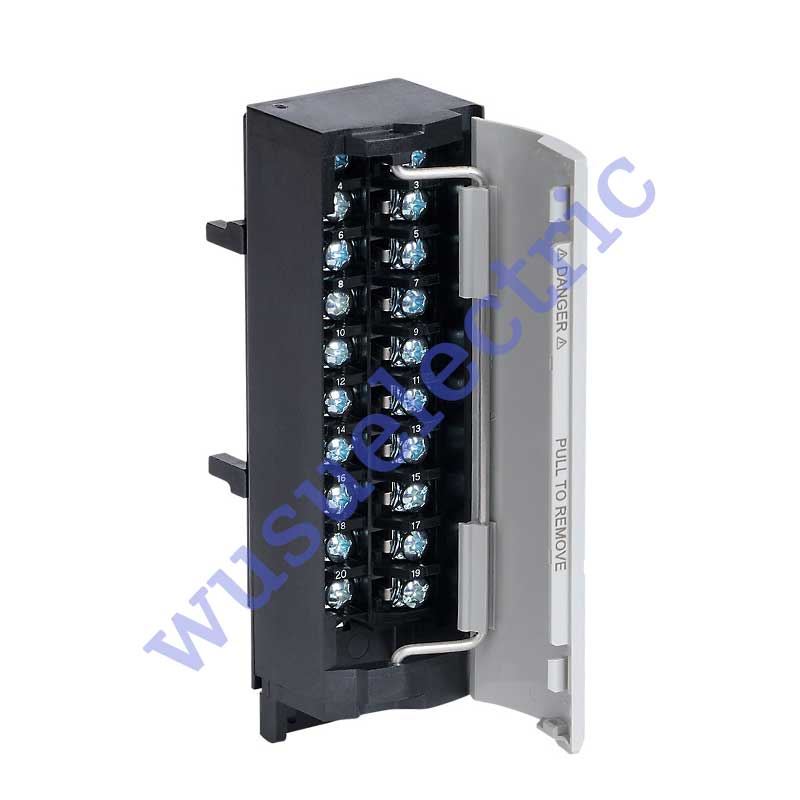

Allen Bradley 1756-PBNH 20 Pin Screw Terminal Block

• Weight：0.25 lbs (0.11 kg)
• Module Type：Terminal Block
• Clamp Type：Screw-Clamp
• Pins：20-Pin Connection
• Backplane Current (5Volts)：1,200 milliamps
• Backplane Current (24 Volts)：2.5 milliamps
• Power Dissipation (Max)：6.19 Watts
• Wire Size：20 AWG

The 1756-PBNH is a 20-pin screw terminal block specifically designed to handle signal wiring and module connections for ControlLogix modules. It addresses issues such as wiring complexity and inconvenient maintenance, and is utilized in industrial automation equipment and PLC systems.

The Allen-Bradley 1756-TBNH is a Removable Terminal Block (RTB) for 1756 I/O modules. It is an I/O module accessory and must be ordered separately. The 1756-TBNH provides flexibility in interconnecting 1756 I/O modules and industrial plant wiring. It plugs into the front of the I/O module. The 1756-TBNH removable terminal block is a 20-position NEMA screw-clamp. It has a 1.36 Nm Screw torque and an 8-mm (5/16 in.) maximum Screwdriver width. It has dimensions of 5.51 x 4.41 x 5.71 in. and weighs 0.3 pounds. For wiring, use 0.33 – 2.1 〖mm〗^2 (22 - 14 AWG) solid or stranded copper wire rated at 90 °C (194 °F) or greater with a 1.2-mm (3/64-in.) gauge maximum insulation must be used. On any single terminal, do not wire more than two conductors. Every ControlLogix I/O module mounts on any ControlLogix chassis and requires a removable terminal block (RTB) to connect all the field-side wiring. Each I/O module has many applications ranging from high-speed digital processing to process control. In ControlLogix architecture, input and output status is shared among multiple controllers in the same or different chassis using producer-consumer technology. The 1756-TBNH RTB is intended for use in a clean and dry industrial environment with a 0-60 °C operating temperature and a 30g operating shock.
