Saimo FH-03T-6000F Feeding Controller

Saimo feeder controller has two types of 6001 and 6000B type, Respectively, said the big screen and small screen, 6 handle the load cell weight signal and the belt speed signal to calculate the flow of materials and the cumulative amount of flow shown in the instrument . While providing remote pulse count output and flow current signal output. The communication board can communicate with the host computer using RS-232 or RS-485 interface.

The instrument features an intuitive interface that is easy to operate. Furthermore, it incorporates various automatic diagnostic functions and supports user-performed calibration and maintenance. Environmental Parameters:

1. Installation Location (Indoor/Outdoor): The unit should be positioned as close as possible to the load cell, with precautions taken against dust and moisture.

2. Storage Temperature: -40°C to +70°C

3. Operating Temperature: -10°C to +50°C

4. Maximum Relative Humidity: 95% Power Supply:

1. 220 VAC ± 10%, 50 Hz

2. Fuse Rating: 0.5A

3. EMI / RFI Filter (Electromagnetic/Radio Frequency Interference Filter) Load Cell Interface:

1. The instrument provides a 10 VDC ± 10%, 200 mA excitation power output, capable of supporting up to four load cells connected in parallel.

2. Sensitivity Range: 0.5 mV/V to 3.5 mV/V

3. Maximum Input Signal: 3 mV

4. Load cell shield grounding.

5. When the cable distance exceeds 60 meters (but does not exceed 900 meters), an excitation compensation circuit is required.

6. Select between local compensation and remote compensation modes via jumpers. Mainboard Digital Input Ports:

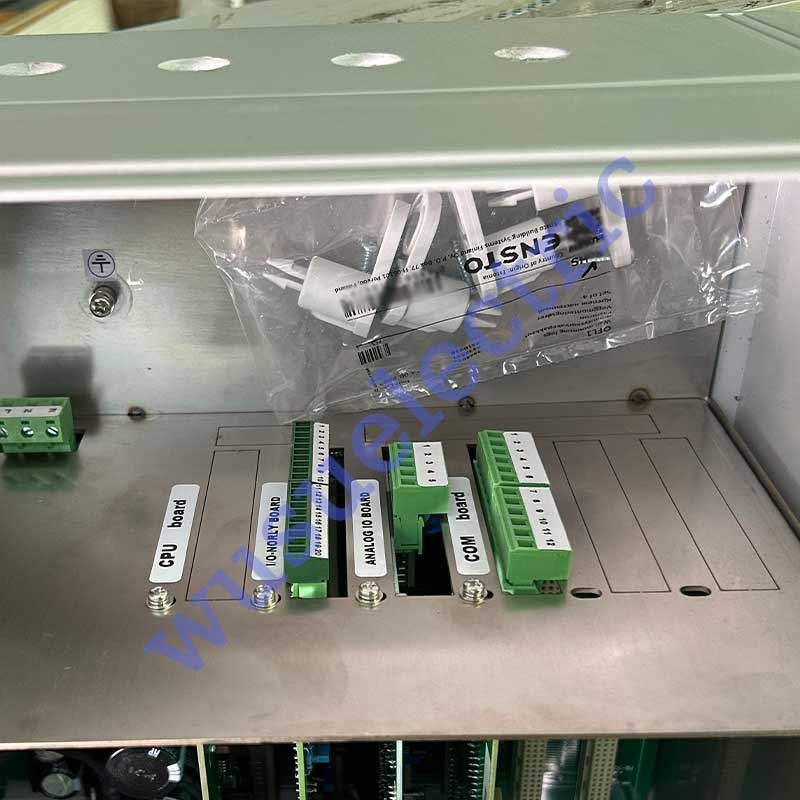

The instrument's mainboard provides three programmable input ports designed to receive dry contact switch signals. Mainboard Digital Output Ports:

The instrument's mainboard provides three programmable output ports, generating transistor switch signals. Communication Board:

The instrument can be equipped with an optional communication board to communicate with a host computer via standard RS-232 or RS-485 serial interfaces, enabling data acquisition and remote operation. Screen Size:

6001B: Large-screen model; 6001B: Small-screen model. Mounting Method:

6001P, 6001BP: Panel Mount (Embedded)

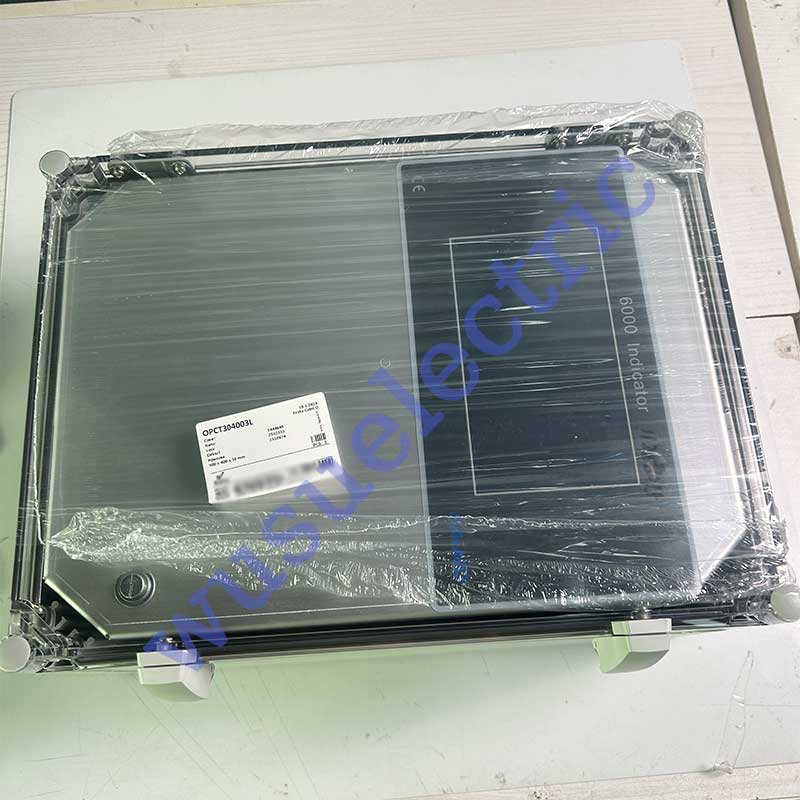

6001F, 6001BF: Field Mount (Wall-mounted)
