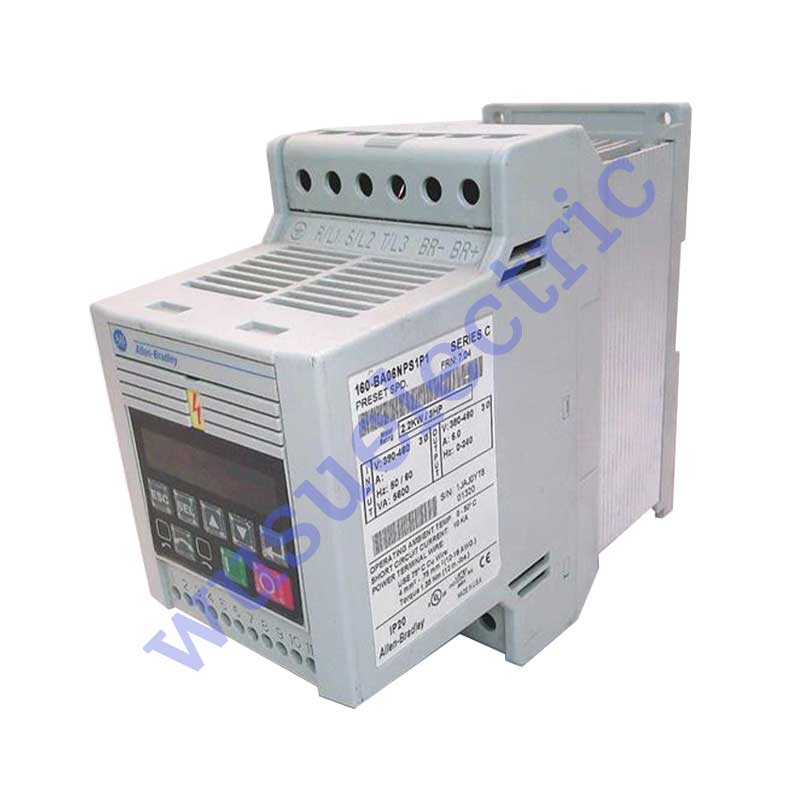

Allen Bradley 160-BA06NPS1 Variable Speed Drive

• Weight: 2.44 lbs (1.11 kg)
• Enclosure Type: Open
• Input Current: 7.0 Amperes
• Cooling Method: Fan Cooled
• Product Family: 160 Smart Speed Controller (SSC)
• Input Voltage Range: 304–506 VAC, 3-Phase
• Input Voltage, Nominal: 380 / 460 VAC, 3-Phase
• Input Frequency: 50 / 60 Hz
• Input kVA: 5.6 kVA
• Output Current: 6.0 A
• Output Power: 2.2 kW (3 HP)
• Installation: DIN Rail Mount
• Control Method: Volts / Hertz (V/Hz)
• Built-in Communication Port: RS232
• Communication Protocol: DF1
• Drive Category: 160 SSC Smart Speed Controllers
• Voltage Rating: 380–460 V
• Phase Input: 3
• Model: Preset Speed
• Current Rating: A06
• Input Voltage: 380–460 VAC
• Model Type: Preset Speed
• Output Voltage: 380–460 VAC
• Series: C
• Output Phase: 3-Phase
• Max. Output Amps: 6
• Operational Input Voltage Range: 340–506 V AC
• Output Frequency: 0–240 Hz

The 160-BA06NPS1 is part of the bulletin 160 Smart Speed Controller (SSC) series by Allen-Bradley. This device is specifically a Variable Speed Drive (VSD) which is more popularly termed as Variable Frequency Drive (VFD). It is mainly used to implement modulating speed control of industrial, 3-phase AC motors. The 160-BA06NPS1 is a Preset Speed Model drive. With preset speed, this drive implements speed modulation via predefined speed settings configured by the user stored in drive parameters 61-68. This drive allows the configuration of up to 8 preset speeds and 2 acceleration and deceleration settings. The preset speeds are delivered by the 160-BA06NPS1 to the output terminals when triggered by the external switches wired to the open collector inputs available to the input terminals of this drive. Aside from these inputs, the 160-BA06NPS1 has a Form C relay contact output that can be used with resistive and inductive loads. The 160-BA06NPS1’s nominal input voltage rating is 380-460 VAC, 3-Phase along with an input current of 7.0 Amperes. It has an output voltage of 380-460 VAC, 3-Phase, the programmable output frequency of 0-240 Hz, output current, and power of 6.0 Amperes and 3.0 HP or 2.2 kW, respectively. This drive has an IP20 rated enclosure with an ambient temperature of 0 to 50 Degree Celsius storage temperature of -40 to 85 Degree Celsius and relative humidity of 0-95%, non-condensing. This drive implements Pulse Width Algorithm (PWM) technology and IGBT circuit for generating 3-Phase output frequency. It implements speed control using the Volts/Hertz (V/Hz) control method.

The Bulletin 160-BA06NPS1 device is part of the smart speed controller by Allen Bradley. Weighing around 5 pounds, the dimensions of the 160-BA06NPS1 device are 12 x 12 x 18 inches. Used to generate a power of around 3 HP or 2.2 kW with 6.0 Amperes of maximum output current. The power dissipation value offered by the 160-BA06NPS1 device is around 80 Watts. The Bulletin Smart Speed Controller 160-BA06NPS1 device by Allen Bradley has been introduced in the market with an overall innovative design. It features some high-end hardware specifications that deliver excellent performance results. For instance, the feedthrough 6-pole power terminals of the device aim at simplifying the overall grounding & power wiring practices towards making the Bulletin 160-BA06NPS1 device the perfect choice for delivering constant speed parameters. Moreover, the presence of hinged terminal guards in the device offers easier access to the specific power terminals. The terminal screws of this given unit are easily removable, simplifying the process of establishing connections of the ring lug. The Program Keypad Module of the device offers local control along with effective access to all the given displays, as well as program parameters. Similarly, the DIN Panel or Rail permits cost-effective, quicker installation of the device. The device is able to fit perfectly on the standard 35 millimeter DIN rail and follows the standard DIN dimensions. The Programmable Output unit of the device connects the indicators or controls, ensuring the seamless monitoring of the specific load/drive conditions. The Programmable Terminal Block unit of the device offers immense flexibility towards ensuring a wide range of applications without the need for any external control logic unit. The Allen-Bradley 160-BA06NPS1 is a Variable Frequency Drive (VFD) from the 160 AC Smart Speed Controller product family. This drive requires a supply input voltage of 340- 506 Volts AC, 3-phase, with a nominal supply of 380-460 Volts AC, 3-Phase, 50/60 Hertz. Additionally, it has an input power of 5.6 kVa and an input current of 7.0 Amperes. It generates a motor applicable output current of 6. 0 Amperes and output power of 3 Horsepower or 2.2 Kilowatts. The 160-BA06NPS1 comes with a Fan cooled hardware that comes pre-installed with the device. This drive also comes with two (2) LED indicators for easy identification of the drive’s operating status (READY) as well as Faulted (FAULT) state. Additionally, it uses a finger-safe terminal on both top and bottom terminal strips as this drive comes with a hinged finger guard. DC bus test points are also available to this VFD for easy access and testing of the DC bus voltage. Being a 3 Horsepower drive, this drive is provided with a DIN rail latch for a simplified installation method. Optional drive accessories include a dynamic brake module, line filter module, and communication interfaces such as DeviceNet or RS-232 communication modules. Programming accessories may also be added to this drive such as a Program Keypad Module, Remote Programming Adapter for use with the Remote keypad module, or the CopyCat Keypad module which can be used quickly to copy existing configurations. A 24 Volt DC interface module is also available as an accessory as well as a capacitor module which is used to improve the inherent braking characteristic.
